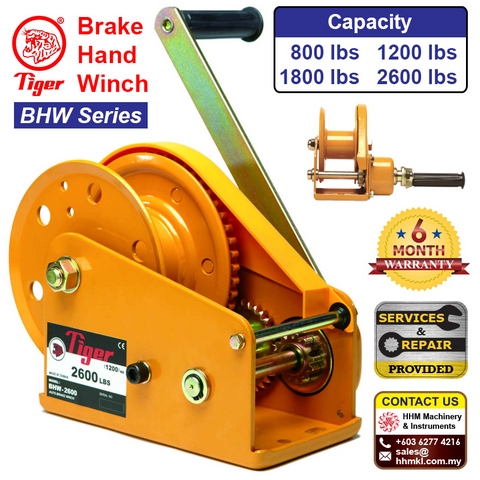

TIGER LIFTING BHW Series Brake Hand Winch

TIGER LIFTING BHW Series Brake Hand Winch

Price:

R.F.Q.

Share Product:

Detail

Brake Hand Winch BHW Series

Manufacturer: TIGER LIFTING

winch iconTiger Lifting logotaiwan flag6 Month WarrantyBrake Hand Winch BHW Series

Brake Hand Winch BHW Series

Capacities:

800 lbs
1200 lbs​
1800 lbs
2600​ lbs

Main Features:

1. The original brake hand winch
2. High quality multi-purpose winch
3. Automatic load-actuated brake can hold the load in any position
4. Compact, light-weight and rugged construction
5. Gears and brakes fully covered to prevent dust, dirt and rain contamination
6. Heat treated gears
7. Very low operator effort required for easy operation
8. Dual handle pinion shaft option available on all models, allows handle to be fitted on both sides.
9. Universal mounting plate
10. Available as 800lb, 1200lb, 1800lb and 2600lb models.
11. For cable and strap
12. Finished in high quality powder coat paint offering excellent corrosion protection
13. Available with OCP corrosion protection
14. Noiseless 1200lb model available
15. 3D Drawings available on full range for project planning
16. Operating temperature of -20°C to +80°C (temperature range of -40°C to +80°C available as an option)

Tiger Brake Winch

The Tiger Brake Winch is a high quality multi-purpose winch used for a wide variety of lifting and hoisting applications.

The automatic brake ensures the load remains suspended when the crank is released and avoids unchecked descent of the load; there is no freewheeling making the hand winch extremely safe to operate.

All the mechanical components are enclosed for protection against dust, dirt and rain contamination. This equipment has a lifting capacity ranging from 800lbs to 2600lbs.

The BHW is compact and lightweight yet rugged and durable. These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009.

Superior gear design:

In one operation which includes heat-treatment
and electroplating, Tiger gears are made strong, durable, and corrosion resistant.

High precision construction minimizes gear noise.

Double brake pawl for extra safety:

Tiger Winches have a mechanical brake system
with a double brake pawl made of heat treated
alloy steel to withstand wear and provide extra
safety under all operating conditions.

Certification:

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.

Noiseless 1200lb Model:

This model is equipped with a unique quiet brake design that is virtually silent and fully automatic. Best suited to those locations where quiet is required, such as schools, hospitals and theaters.

Corrosion Protection Option:

This model is protected by our unique coating – OCP (Organic Compound Protection).

The uniqueness of this coating gives unprecedented long term reliability and superior corrosion resistance and protection in the most severe conditions.

The OCP coating provides excellent friction protection and has been proven to be effective through at least 1000 hours of the ASTM B 117 Salt Spray Test.

The coating gives the properties of stainless steel without the cost implications.

Dual Handle Option:

Our BHW range can be modified with a new style pinion shaft that allows the handle to be fitted on either or both sides of the winch; this has been designed for areas with difficult access or situations when the conventional right handed winch handle isn’t suitable.

For BHW winches with a dual handled pinion shaft, the BHW-0800 (800lb) and BHW-1200 (1200lb) models are supplied with two handles, as the fittings for each side are not the same.

The BHW-1800 (1800lb) and BHW-2600 (2600lb) models come with one handle that fits on either side.

If a handle is required to be fitted on both sides of either the 1800lb or 2600lb models, please ask us for more details.

The dual handle pinion shaft for the noiseless version (BHW-1200N) is not generally available from stock but may be available as an option – please contact us if this is your preferred design.

6 month warranty against manufacturing defect only, for all products.

*Due to our policy of continual product development, dimensions, weights and specifications may change without prior notice. Please check with your Tiger sales team when ordering.

Technical Specification:

MODELBHW-800BHW-1200BHW-1800BHW-2600
Capacity (Lbs.)800120018002600
Hand force required (kg)14.5152219
Gear ratio4.1 : 14.1 : 15 : 110 : 1
Hub diameter (mm)Ø 40Ø 50Ø 70Ø 80
Handle Length (mm)160210320320
Unit weight (kg)33.3810.3
Rope diameter (mm)(Ref.)Ø 4Ø 5Ø 7Ø 8
Rope storage cap. (M)36232418
Cataloguebhw-800bhw-1200bhw-1800bhw-2600BHW back viewDrawing BHW-800Drawing BHW-1200Drawing BHW-1800Drawing BHW-2600BHW viewTiger Lifting logo

MANUFACTURER:

TIGER LIFTING

Tiger Lifting manufacture and provide the full range of Tiger hoisting and winching products globally, including the Tiger Subsea Lifting range. We have recently increased our range to include high quality height safety hardware products.

We have close partnerships with successful lifting equipment distributors across the world. Our commitment to innovation and customer satisfaction mean we will continue to develop our products by working closely with our customers.

We have manufactured the Tiger brand of manual lifting products for over 50 years and have a proven track record and an enviable reputation for supplying high quality safe, stable products into a varied cross-section of demanding industries throughout the world. We aim to set the highest standards in manufacturing, service, product reliability and safety and to provide industry leading value to our customers and supply chain partners.

Robust and reliable are phrases synonymous with Tiger Products. They must be, and are, of the highest quality in order to meet the lifting requirements specified by our customers and to operate effectively in the extremely harsh environmental conditions our clients often place them in.

Our range includes unique, patented designs and our products meet or exceed all relevant international standards, serving all spheres of global industry.

We employ over 100 people across our distribution centres located in Europe and North America, our manufacturing plant based in Taiwan and our various sales offices in different countries.
