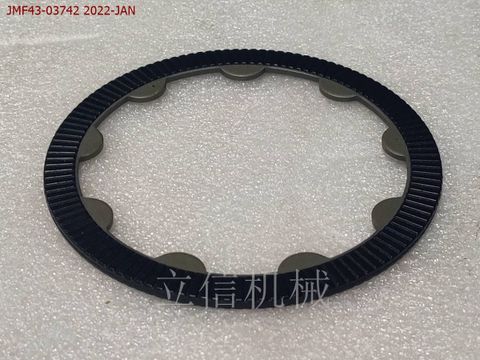

Friction Plate for Swing Motor or Travel Motor excavator

Function of the Friction Plate in a Swing Motor

Braking Mechanism:

• Primary Role: The friction plate is a key component in the swing motor’s braking system. It helps to control and stop the rotational movement of the swing motor when needed.
• Brake Engagement: When the braking system is activated, the friction plate presses against a mating surface (typically a brake disc or another friction plate) to create the necessary friction to slow down or stop the swing motor.

Controlling Swing Motion:

• Motion Control: The friction plate helps in controlling the swing motion of the excavator’s upper structure. This is essential for precise positioning and stability during operation.
• Damping Movement: By providing controlled friction, the friction plate helps to dampen any abrupt movements or oscillations, ensuring smoother operation and greater control over the swing function.

Heat Dissipation:

• Heat Management: During braking, significant heat is generated due to friction. The friction plate is designed to withstand and dissipate this heat, preventing overheating and ensuring the braking system remains effective.
• Material Composition: Typically made from high-friction, heat-resistant materials, the friction plate can absorb and manage the heat generated during braking, thereby maintaining performance and longevity.

Load Distribution:

• Even Distribution: The friction plate helps distribute the braking forces evenly across the brake assembly. This prevents localized stress and wear, contributing to the durability and reliability of the braking system.
• Structural Support: By distributing loads evenly, the friction plate supports the structural integrity of the swing motor’s braking mechanism.

Safety Enhancement:

• Operational Safety: The friction plate is crucial for the safe operation of the excavator. Reliable braking ensures that the swing function can be controlled precisely, preventing accidental movements that could lead to accidents or damage.
• Emergency Braking: In situations where sudden braking is required, the friction plate provides the necessary friction to bring the swing motor to a quick and safe stop.

Importance in Swing Motor Performance

The friction plate is vital for the reliable and efficient operation of the swing motor. Its role in the braking mechanism, controlling swing motion, dissipating heat, distributing loads, and enhancing safety makes it an essential component. Proper functioning of the friction plate ensures that the swing motor can be operated smoothly, safely, and effectively, which is crucial for the overall performance of the excavator.

Maintenance and Care

• Regular Inspection: Periodically inspect the friction plate for signs of wear, glazing, or damage. Early detection of issues can prevent more severe problems and downtime.
• Replacement: Replace the friction plate when it shows significant wear or reduced performance. Using worn friction plates can compromise braking efficiency and safety.
• Cleaning: Ensure that the friction plate and surrounding components are kept clean from debris and contaminants that could affect performance.
• Heat Management: Monitor the braking system to ensure it is not overheating. Excessive heat can damage the friction plate and reduce its effectiveness.

Summary

In summary, the friction plate in a swing motor is essential for:

• Providing effective braking by creating necessary friction.
• Controlling and damping the swing motion for precise operation.
• Dissipating heat generated during braking to prevent overheating.
• Distributing braking loads evenly to prevent localized wear.
• Enhancing operational safety through reliable and controlled braking.

Proper maintenance and timely replacement of the friction plate are crucial to ensure the optimal performance and safety of the swing motor and the overall hydraulic system in Komatsu excavators.
