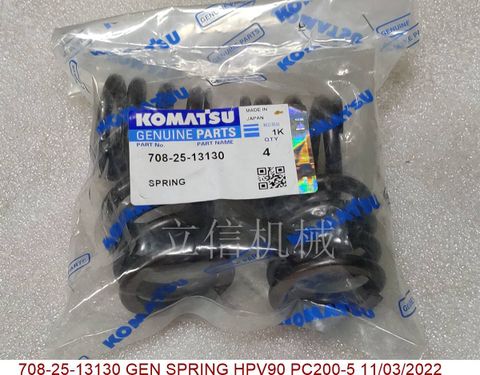

Main Pump Spring

In a hydraulic main pump, the spring located in the middle of the rotor serves several important functions:

Axial Stability: The spring helps maintain axial stability of the rotor within the pump housing. It applies a constant force, ensuring that the rotor remains in its proper position during operation, even when subjected to varying loads and pressures.

Vibration Damping: The spring absorbs and dampens vibrations generated during pump operation. By reducing vibration levels, the spring contributes to smoother and quieter pump performance, enhancing overall system reliability.

Tolerance Compensation: The spring compensates for manufacturing tolerances and minor variations in pump components. It helps ensure proper alignment and clearance between the rotor and other internal components, optimizing pump efficiency and minimizing wear.

Seal Pressure: In some pump designs, the spring exerts pressure on sealing elements, such as shaft seals or piston seals, to maintain their effectiveness. This helps prevent leakage of hydraulic fluid and ensures proper sealing integrity within the pump.

Temperature Compensation: The spring's properties, such as stiffness and material composition, may be selected to provide temperature compensation. It helps maintain consistent pump performance across a range of operating temperatures, ensuring reliable operation under varying conditions.

Overload Protection: In the event of sudden pressure spikes or excessive loads, the spring can act as a safety mechanism. It allows for limited axial movement of the rotor, helping to absorb shocks and protect pump components from damage.

Preloading: The spring may be preloaded during assembly to provide a specific initial force or tension. This preloading helps optimize pump performance and ensures consistent operation over the pump's lifespan.

Overall, the spring in the middle of the rotor plays a critical role in maintaining axial stability, damping vibrations, compensating for tolerances, ensuring sealing integrity, providing temperature compensation, offering overload protection, and preloading components within the hydraulic main pump. Its proper design, installation, and maintenance are essential for the reliable and efficient operation of the pump and the hydraulic system it serves.
