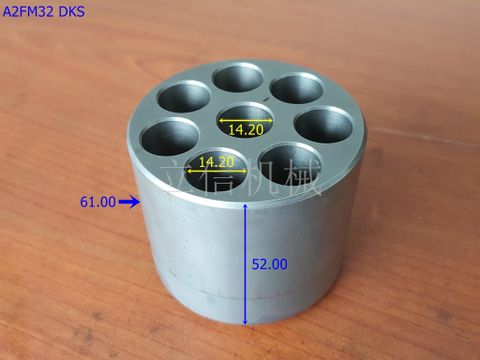

Main pump Swing Motor Travel Motor Rotor

Function of the Rotor in a Main Hydraulic Pump

Fluid Displacement:

• Primary Role: The rotor is responsible for displacing hydraulic fluid within the pump.
• Rotation: As the rotor rotates within the pump housing, it draws in hydraulic fluid from the pump inlet and forces it out through the pump outlet, creating flow and pressure in the hydraulic system.

Pressure Generation:

• Pressure Conversion: The rotation of the rotor compresses the hydraulic fluid, increasing its pressure.
• Energy Transfer: Mechanical energy from the pump's drive source (such as an electric motor or engine) is converted into hydraulic energy by the rotor, providing the necessary pressure for hydraulic system operation.

Flow Control:

• Volume Regulation: The design and size of the rotor help regulate the volume of hydraulic fluid pumped by the main pump.
• Flow Direction: The rotation of the rotor determines the direction of fluid flow within the pump, allowing for precise control over hydraulic system operation.

Efficiency Optimization:

• Rotor Design: The shape, size, and configuration of the rotor are optimized for maximum pump efficiency.
• Energy Conversion: The rotor efficiently converts mechanical energy into hydraulic energy, minimizing energy losses and maximizing pump performance.

Sealing Function:

• Fluid Containment: The rotor creates a seal against the pump housing, preventing hydraulic fluid from leaking past it.
• Seal Integrity: Proper sealing ensures that the pump maintains the necessary pressure levels and prevents fluid leakage, ensuring efficient operation.

Durability and Reliability:

• Material Strength: Rotors are typically made from high-strength materials to withstand the stresses of rotation and high-pressure operation.
• Wear Resistance: They are designed to resist wear and corrosion, ensuring long-term durability and reliability of the pump.

Importance in Hydraulic Pump Performance

The rotor is essential for the reliable and efficient operation of the main hydraulic pump. Its functions in fluid displacement, pressure generation, flow control, efficiency optimization, sealing, durability, and reliability contribute to the overall performance, longevity, and safety of the pump and the hydraulic system.

Maintenance and Care

• Regular Inspection: Periodically inspect the rotor for signs of wear, damage, or improper sealing. Replace worn or damaged components promptly to prevent fluid leakage and maintain pump performance.
• Lubrication: Ensure proper lubrication of the rotor and pump housing surfaces to reduce friction and wear, prolonging the lifespan of pump components.
• Seal Replacement: Replace seals as needed to maintain proper sealing integrity and prevent fluid leakage.
• Operational Checks: Monitor pump performance and efficiency to detect any abnormalities that may indicate rotor-related issues.

Summary

In summary, the rotor in a main hydraulic pump is essential for:

• Displacing hydraulic fluid and generating pressure
• Controlling fluid flow and volume
• Optimizing pump efficiency and energy conversion
• Providing sealing against fluid leakage
• Ensuring durability and reliability of pump operation

Proper maintenance and care of the rotor are crucial to ensure the optimal performance, efficiency, and longevity of the main hydraulic pump and the overall hydraulic system.
