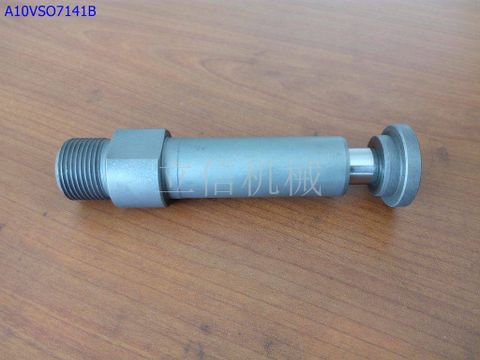

SPOOL CONTROL A10VSO

Function of Spool Control in an A10VSO71 Main Pump

Flow Regulation:

• Primary Role: The spool control mechanism regulates the flow rate of hydraulic fluid through the pump.
• Flow Adjustment: By adjusting the position of the spool, the mechanism modulates the volume of fluid displaced by the pump, controlling the flow rate to match system demands.

Pressure Control:

• Pressure Regulation: The position of the spool control mechanism affects the pressure generated by the pump.
• Pressure Adjustment: By adjusting the spool position, operators can vary the pump's output pressure to meet specific system requirements or operating conditions.

Directional Control:

• Flow Direction Regulation: The spool control mechanism helps control the direction of hydraulic fluid flow within the pump.
• Bidirectional Operation: By adjusting the position of the spool, the pump can change the direction of fluid flow, facilitating bidirectional operation in hydraulic systems.

Response to Command Signals:

• Signal Sensing: The spool control mechanism responds to command signals from external sources, such as hydraulic control valves or electronic controllers.
• Actuation: Based on these signals, the mechanism adjusts the position of the spool to regulate pump output according to the desired flow rate, pressure, or direction.

System Efficiency Optimization:

• Efficiency Enhancement: Proper adjustment of the spool control mechanism optimizes pump performance and efficiency.
• Energy Savings: By precisely controlling fluid flow and pressure, the mechanism helps minimize energy consumption and maximize system efficiency.

Importance in Hydraulic Pump Performance

The spool control mechanism is essential for the reliable and efficient operation of the A10VSO71 main pump. Its functions in flow regulation, pressure control, directional control, response to command signals, and system efficiency optimization contribute to the overall performance, longevity, and safety of the pump and the hydraulic system.

Maintenance and Care

• Regular Inspection: Periodically inspect the spool control mechanism and associated components for signs of wear, damage, or improper operation. Replace worn or damaged parts promptly to maintain proper function.
• Lubrication: Ensure proper lubrication of moving parts, including the spool and related components, to reduce friction and wear. Use the recommended lubricants and follow the manufacturer's maintenance guidelines.
• System Calibration: Calibrate the spool control mechanism according to system requirements or changes in operating conditions to ensure optimal performance.

Summary

In summary, the spool control mechanism in an A10VSO71 main pump is essential for:

• Regulating flow rate, pressure, and direction of hydraulic fluid
• Responding to command signals for precise control of pump operation
• Optimizing pump performance and system efficiency
• Ensuring reliable and efficient operation of the hydraulic system

Proper maintenance and care of the spool control mechanism are crucial to ensure the optimal performance, efficiency, and longevity of the main pump and the overall hydraulic system.
