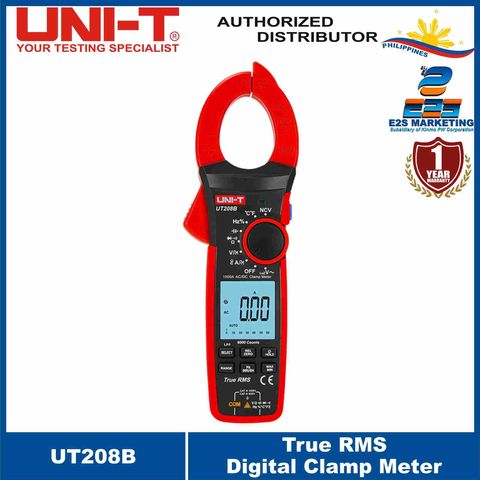

UNI-T UT208B True RMS Digital Clamp Meter
Price:
approx
/ Unit
Share Product:
Detail
The UNI-T UT208B is a high-performance 6000-count True RMS clamp meter designed for advanced industrial and electrical diagnostics. Supporting AC/DC current measurements up to 1000A, this meter includes inrush current capture, low impedance (LoZ) AC voltage mode to eliminate ghost voltage, and a low-pass filter (LPF) function for accurate readings of variable frequency drive (VFD) outputs.
It also features temperature measurement from -40°C to 1000°C with 0.1°C precision, resistance, capacitance, duty cycle, and frequency functions. With its large 42mm jaw opening, 31-segment analog bar, and compatibility with an optional flexible current probe to measure up to 3000A AC, the UT208B is engineered for demanding work in power distribution, HVAC, and motor maintenance.
Certified to EN61010-2010 CAT IV 600V/CAT III 1000V safety standards and CE/ETL approved, the UT208B is a rugged, reliable tool for professionals requiring advanced diagnostics and safety.
Specification
