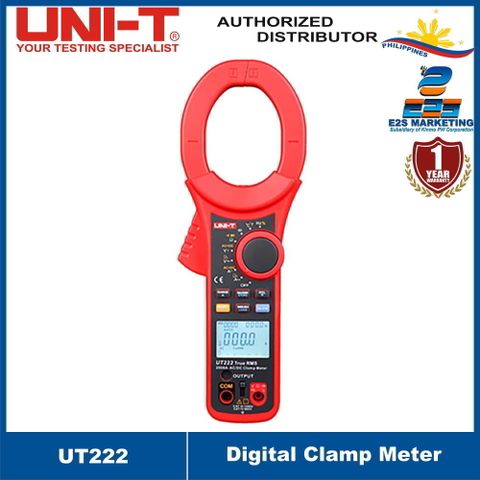

UNI-T UT222 2500A Digital Clamp Meter
Last Update
Price:
approx
/ Unit
Share Product:
Detail
The UNI-T UT222 is a high-capacity 2500A AC/DC digital clamp meter built for demanding industrial applications. Designed with True RMS for accurate AC measurements, it supports a wide voltage range up to 1000V and resistance up to 60MΩ. It also measures capacitance (60mF), frequency (60MHz), and temperature from -40°C to 1000°C. Its 63mm jaw opening accommodates large conductors, while features like low pass filter, inrush current detection, duty cycle, MIN/MAX/relative readings, and 1000-data memory make it exceptionally versatile. With a 6000-count display, analog bar graph, and overload protection on all ranges, the UT222 ensures safety and reliability. Housed in a robust design with a large backlit screen, it’s powered by a 9V battery and comes with test leads, thermocouple, and output cable.
Display count/ Auto range/Diode/ Jaw opening/ True RMS (AC voltage/AC current)/ Continuity buzzer/ Inrush current UT-222
Specification
| Keyword | |
| Brand | |
| Origin | CN |
