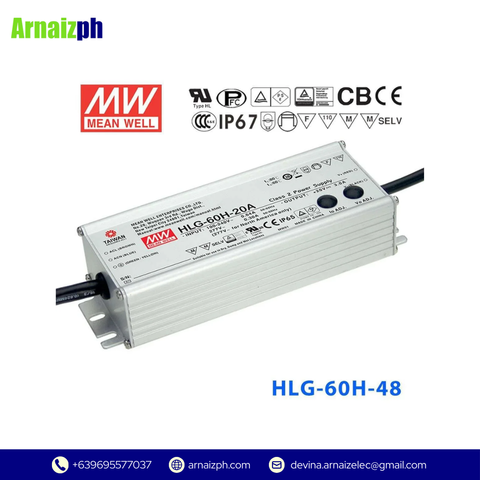

Mean Well HLG-60H-48A LED Driver
https://arnaizph.com/collections/mean-well?srsltid=AfmBOoqhMCDYQOY2A7EnJaO4TLH-RkRmpXGtR8x1KiYtiTXsVXQOlud_
Last Update
Price:
approx
/ Unit
The Mean Well HLG-60H-48A LED Driver delivers efficient constant-voltage and constant-current output with an IP-rated metal enclosure, suitable for indoor and outdoor LED lighting applications.
Share Product:
Detail
The HLG-60H-48A is an AC-DC single-output LED driver operating in Mix Mode (Constant Voltage + Constant Current). It delivers stable power for LEDs, suitable for industrial, outdoor, and commercial installations. It features overload, short-circuit, and overtemperature protection, ensuring safe and durable operation in harsh environments.

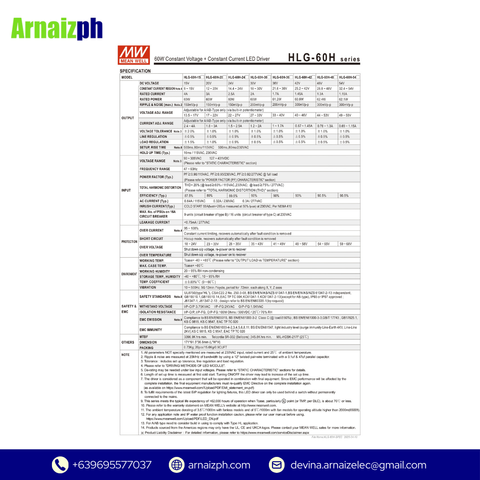

| Feature | Detail |
|---|---|
| Product Type | AC-DC Single Output LED Driver |
| Model | HLG-60H-48A |
| Output Mode | Mix Mode (CV + CC) |
| Nominal Output Voltage | 48V DC |
| Nominal Output Current | 1.25A |
| Output Power | 60W |
| Input Voltage Range | 90–305VAC |
| AC Frequency | 47–63Hz |
| Efficiency | Up to 93% |
| Protection Features | Short-circuit, overload, overvoltage, overtemperature |
| Operating Temperature | −40°C to +70°C |
| Cooling Method | Convection |
| Dimensions (L×W×H) | 215 × 115 × 30 mm |
| Housing Material | IP67 Aluminum Enclosure |
| Applications | LED lighting, industrial lighting, outdoor installations |
| Brand | Mean Well |
| Series | HLG-60H Series |
Specification
| Keyword | |
| Brand | |
| Origin | CN |
