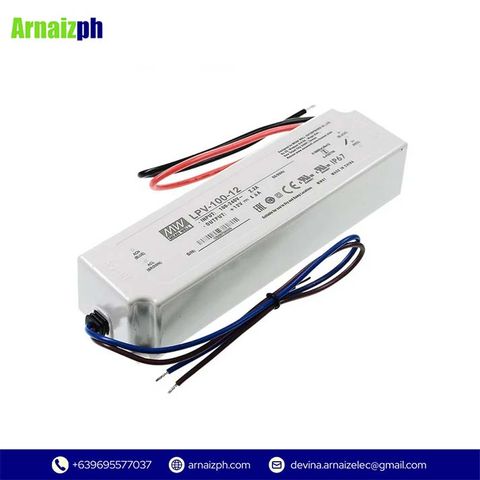

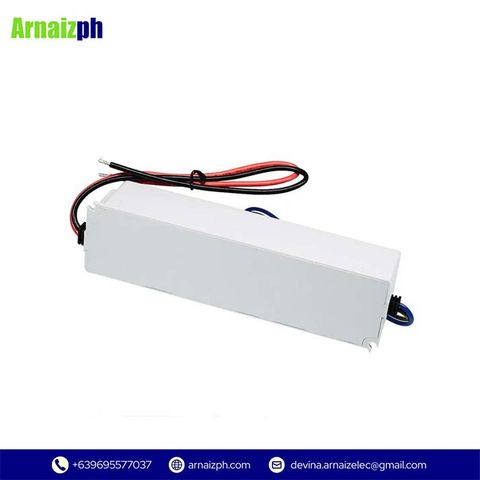

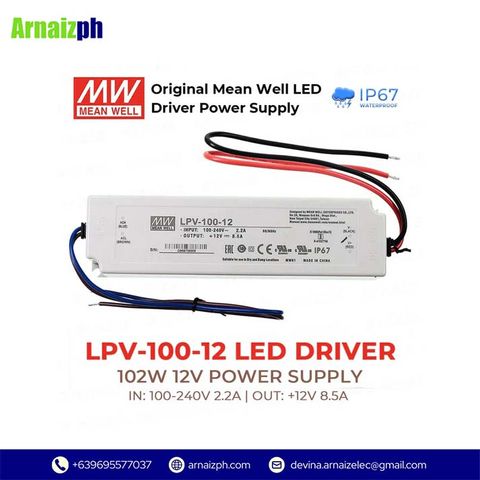

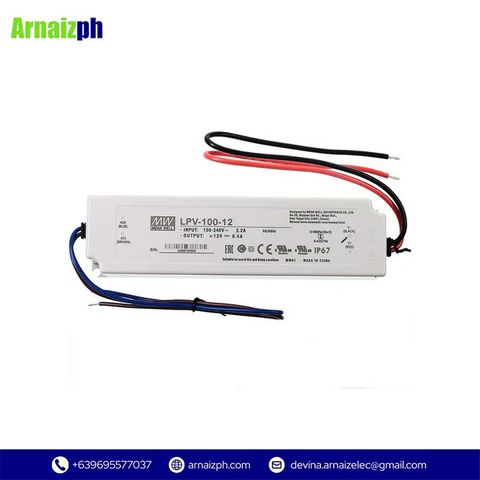

Mean Well LPV-100-12 LED Driver
Price:
approx
/ Unit
The Mean Well LPV-100-12 LED Driver delivers reliable 12V constant-voltage output, making it ideal for LED strips, signage, and lighting systems in indoor and outdoor environments.
Share Product:
Detail
The LPV-100-12 is an AC-DC constant voltage LED driver that supplies a regulated 12V DC output with a power capacity of up to 102W. It features a fully enclosed plastic housing with IP67 protection, making it suitable for both indoor and outdoor LED installations. This non-dimmable power supply ensures dependable performance with built-in safety protections.
| Feature | Details |
|---|---|
| Product Type | LED Driver Switching Power Supply |
| Model | LPV-100-12 |
| Output Power | 102W |
| Output Voltage | 12V DC |
| Rated Output Current | 8.5A |
| Output Mode | Constant Voltage (CV) |
| Input Voltage | 90–264VAC |
| AC Frequency | 47–63Hz |
| Efficiency | Up to 90% |
| Protection Level | IP67 |
| Cooling Method | Natural air cooling |
| Protection Features | Short circuit, overload, overvoltage |
| Dimensions (L × W × H) | 190 × 52 × 37 mm |
| Housing Material | Plastic enclosure |
| Operating Temperature | −30°C to +65°C |
| Applications | LED strips, LED signage, decorative and architectural lighting |
| Brand | Mean Well |
| Series | LPV-100 Series |
Specification
| Keyword | |
| Brand | |
| Origin | CN |
