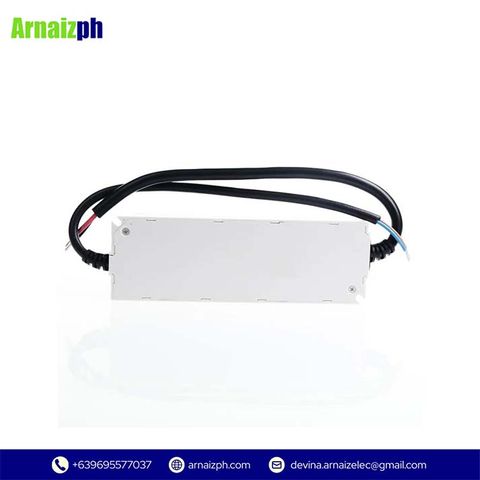

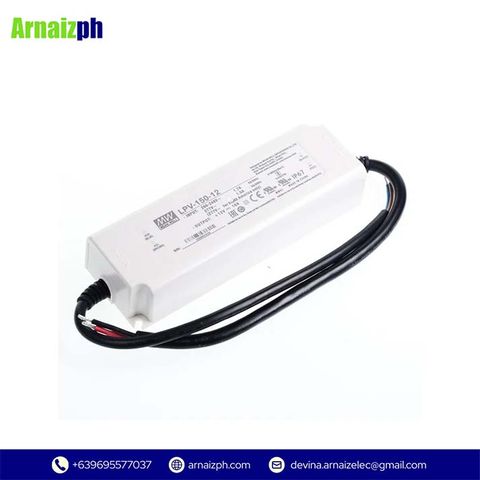

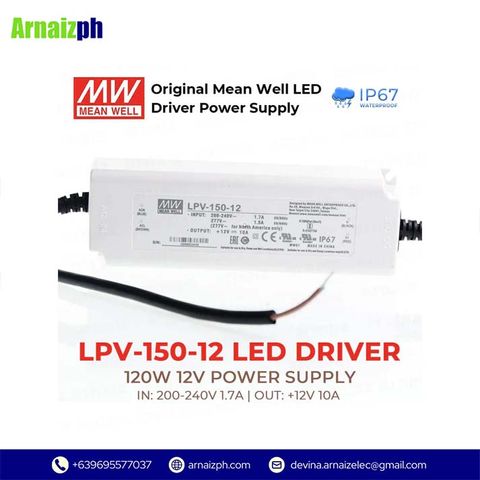

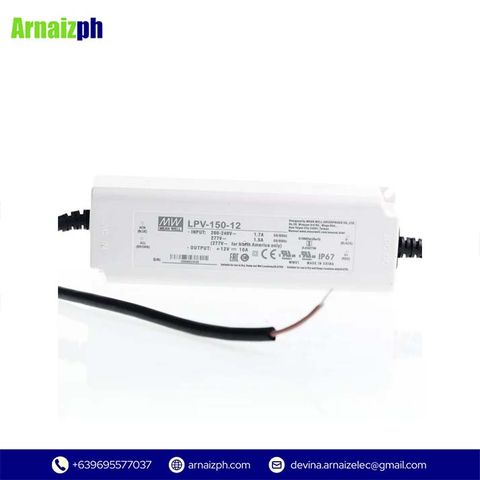

Mean Well LPV-150-12 LED Driver
Price:
approx
/ Unit
The Mean Well LPV-150-12 LED Driver offers efficient 12V constant-voltage output in a fully sealed enclosure, suitable for LED lighting systems requiring reliable and protected power supply.
Share Product:
Detail
The LPV-150-12 is an AC-DC LED driver that delivers a constant 12V DC output with a power rating of up to 120W. It features a compact, fully enclosed plastic housing with IP67 protection, making it suitable for indoor and outdoor LED installations. The unit is non-dimmable and includes comprehensive safety protections to ensure long-term, dependable operation.
| Feature | Details |
|---|---|
| Product Type | LED Driver Switching Power Supply |
| Model | LPV-150-12 |
| Output Power | 120W |
| Output Voltage | 12V DC |
| Rated Output Current | 10A |
| Output Mode | Constant Voltage (CV) |
| Input Voltage | 90–264VAC |
| AC Frequency | 47–63Hz |
| Efficiency | Up to 88% |
| Protection Level | IP67 |
| Cooling Method | Natural air cooling |
| Protection Features | Short circuit, overload, overvoltage |
| Dimensions (L × W × H) | 191 × 63 × 37.5 mm |
| Operating Temperature | −30°C to +65°C |
| Applications | LED strip lighting, signage, architectural lighting |
| Brand | Mean Well |
| Series | LPV-150 Series |
Specification
| Keyword | |
| Brand | |
| Origin | CN |
