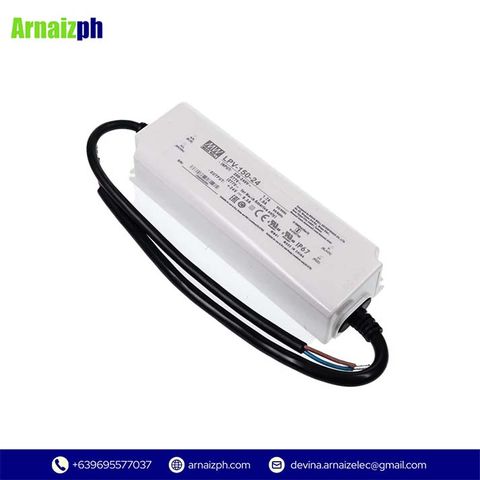

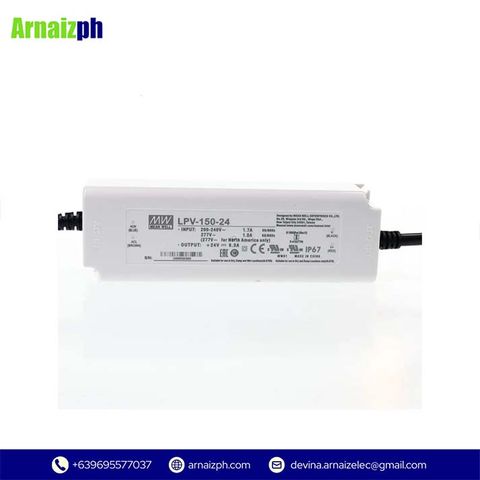

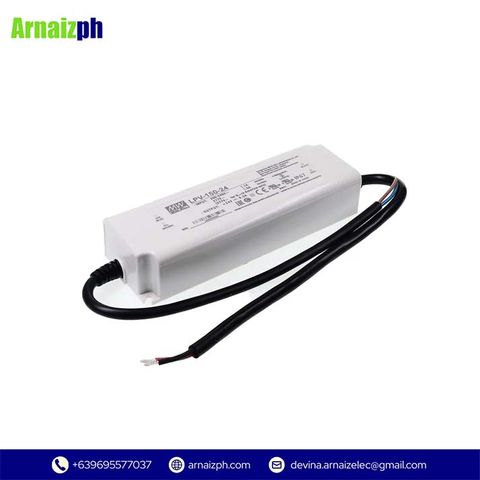

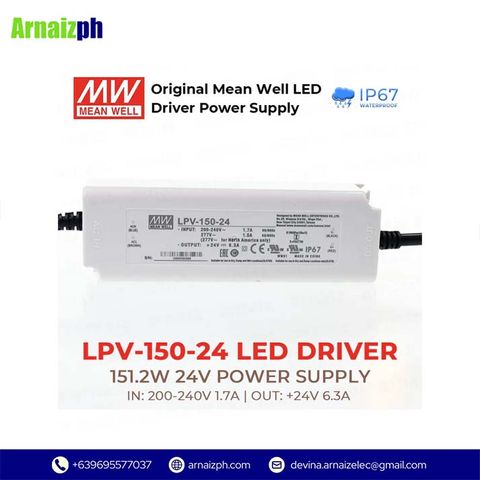

Mean Well LPV-150-24 LED Driver
Price:
approx
/ Unit
The Mean Well LPV-150-24 LED Driver provides stable 24V constant-voltage performance, designed for LED lighting installations that demand protection from dust and moisture.
Share Product:
Detail
The LPV-150-24 is an AC-DC constant voltage LED driver designed to supply a regulated 24V DC output with a power capacity of up to 151.2W. It features a fully enclosed plastic housing with IP67 protection, making it suitable for both indoor and outdoor LED installations. This non-dimmable power supply provides reliable performance with built-in safety protections for long-term operation.
| Feature | Details |
|---|---|
| Product Type | LED Driver Switching Power Supply |
| Model | LPV-150-24 |
| Output Power | 151.2W |
| Output Voltage | 24V DC |
| Rated Output Current | 6.3A |
| Output Mode | Constant Voltage (CV) |
| Input Voltage | 90–264VAC |
| AC Frequency | 47–63Hz |
| Efficiency | Up to 90% |
| Protection Level | IP67 |
| Cooling Method | Natural air cooling |
| Protection Features | Short circuit, overload, overvoltage |
| Dimensions (L × W × H) | 191 × 63 × 37.5 mm |
| Housing Material | Plastic enclosure |
| Operating Temperature | −30°C to +65°C |
| Applications | LED strips, signage, architectural and decorative lighting |
| Brand | Mean Well |
| Series | LPV-150 Series |

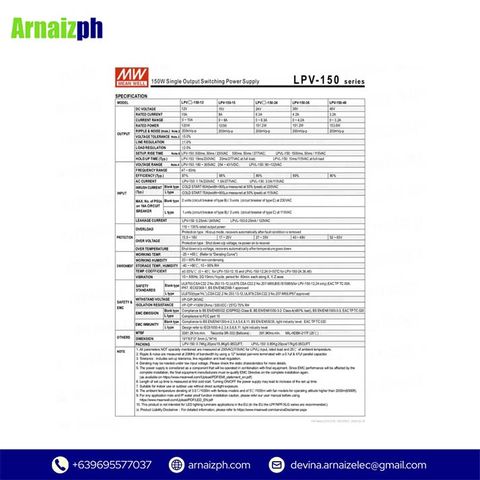

Specification
| Keyword | |
| Brand | |
| Origin | CN |
