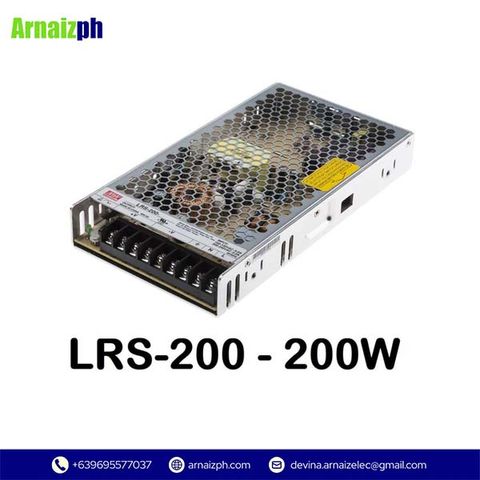

Mean Well LRS-200-05 Power Supply
Price:
approx
/ Unit
The Mean Well LRS-200-05 Power Supply delivers stable and efficient 5V output in a compact metal enclosure, designed for industrial automation, control systems, and electronics requiring reliable low-voltage power.
Share Product:
Detail
The Mean Well LRS-200-05 is an AC-DC single-output enclosed power supply featuring a low-profile 1U design, universal AC input, and high vibration resistance up to 5G. Its rugged metal enclosure and complete protection functions make it ideal for industrial automation, control panels, and power-hungry low-voltage applications.
| Feature | Detail |
|---|---|
| Product Type | AC-DC Single Output Enclosed Power Supply |
| Model | LRS-200-05 |
| Output Power | 200W |
| Nominal Output Voltage | 5V DC |
| Output Current | 40A |
| Input Voltage Range | 90–264VAC |
| AC Frequency | 47–63Hz |
| Efficiency | Up to 84% |
| Ripple & Noise | 150mVp-p |
| Voltage Adjustment Range | 4.5–5.5V |
| Hold-Up Time | 16ms (230VAC) |
| Power Factor | PF > 0.5 |
| Protection Features | Short circuit, overload, overvoltage, overtemperature |
| Cooling Method | Forced air cooling |
| Vibration Resistance | Up to 5G |
| Operating Temperature | −30°C to +70°C |
| Mounting Type | Panel mount |
| Dimensions (L×W×H) | 215 × 115 × 30 mm |
| Housing Material | Metal enclosure |
| Applications | Industrial control systems, automation, LED power systems |
| Brand | Mean Well |
| Series | LRS-200 Series |
Specification
| Keyword | |
| Brand | |
| Origin | CN |
