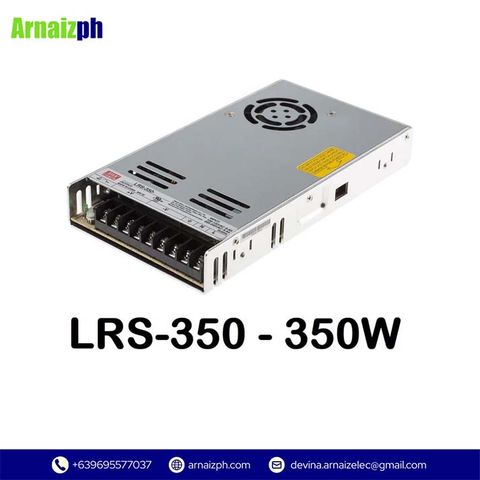

Mean Well LRS-350-24 Power Supply
Price:
approx
/ Unit
The Mean Well LRS-350-24 Power Supply provides high-output 24V AC-DC conversion with robust protection features, ideal for industrial machinery, automation systems, and high-load applications.
Share Product:
Detail
The LRS-350-24 is an AC-DC single-output enclosed power supply designed for industrial and automation applications, featuring universal AC input, high vibration resistance up to 5G, and a low-profile 1U design. It offers reliable power with protection against short circuits, overload, and overvoltage, making it ideal for control systems and other demanding environments.
| Feature | Detail |
|---|---|
| Product Type | AC-DC Single Output Enclosed Power Supply |
| Model | LRS-350-24 |
| Output Power | 350W |
| Nominal Output Voltage | 24V DC |
| Output Current | 14.6A |
| Input Voltage Range | 90–264VAC |
| AC Frequency | 47–63Hz |
| Efficiency | Up to 89% |
| Ripple & Noise | 120mVp-p |
| Voltage Adjustment Range | 21–28V |
| Hold-Up Time | 20ms (230VAC) |
| Power Factor | PF > 0.95 |
| Protection Features | Short circuit, overload, overvoltage, overtemperature |
| Cooling Method | Forced air cooling |
| Vibration Resistance | Up to 5G |
| Operating Temperature | −30°C to +70°C |
| Mounting Type | Panel mount |
| Dimensions (L×W×H) | 215 × 115 × 30 mm |
| Housing Material | Metal enclosure |
| Applications | Industrial automation, control systems, LED power systems |
| Brand | Mean Well |
| Series | LRS-350 Series |
