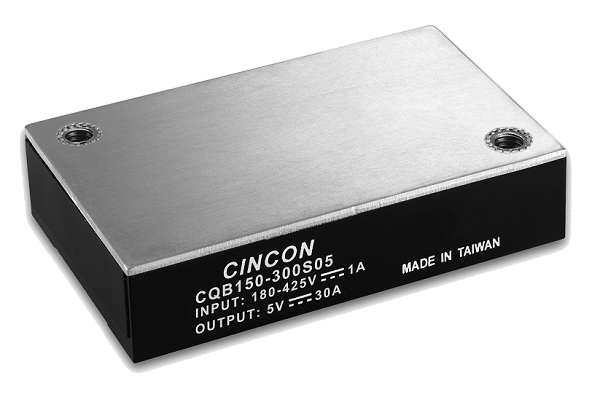

CINCON CQB150-300S - 150Watts Quarter Brick DC-DC Converter Input Voltage 180-425VDC
Last Update
3KVAC Isolation
UL60950-1 & CB
| SKU | Please select |
| Output Voltage | Please select |
| Output Current | Please select |
Share Product:
Detail
- 150W Isolated Output
- Efficiency to 89%
- Fixed Switching Frequency
- Regulated Outputs
- Remote On/Off
- Low No Load Power Consumption
- Over Temperature Protection
- Over Voltage/Current Protection
- Continuous Short Circuit Protection
- Quarter Brick Size meet industrial standard
- CE Mark Meets 2014/30/EU
- UL60950-1 2nd (Reinforced Insulation) Approval
| Part Number | Input Voltage | Output Voltage | Output Current | No load Input Current | Efficiency (%) | I/O Isolation Voltage |
|---|---|---|---|---|---|---|
| CQB150-300S05 | 180~425V | 5V | 30A | 10mA | 86 | 3000VAC |
| CQB150-300S12 | 180~425V | 12V | 12.5A | 10mA | 89 | 3000VAC |
| CQB150-300S15 | 180~425V | 15V | 10A | 10mA | 89 | 3000VAC |
| CQB150-300S24 | 180~425V | 24V | 6.3A | 10mA | 88.5 | 3000VAC |
| CQB150-300S28 | 180~425V | 28V | 5.4A | 10mA | 88.5 | 3000VAC |
| CQB150-300S48 | 180~425V | 48V | 3.2A | 10mA | 89 | 3000VAC |
| CQB150-300S05N | 180~425V | 5V | 30A | 10mA | 86 | 3000VAC |
| CQB150-300S12N | 180~425V | 12V | 12.5A | 10mA | 89 | 3000VAC |
| CQB150-300S15N | 180~425V | 15V | 10A | 10mA | 89 | 3000VAC |
| CQB150-300S24N | 180~425V | 24V | 6.3A | 10mA | 88.5 | 3000VAC |
| CQB150-300S28N | 180~425V | 28V | 5.4A | 10mA | 88.5 | 3000VAC |
| CQB150-300S48N | 180~425V | 48V | 3.2A | 10mA | 89 | 3000VAC |
Specification
| Keyword | |
| Brand |
