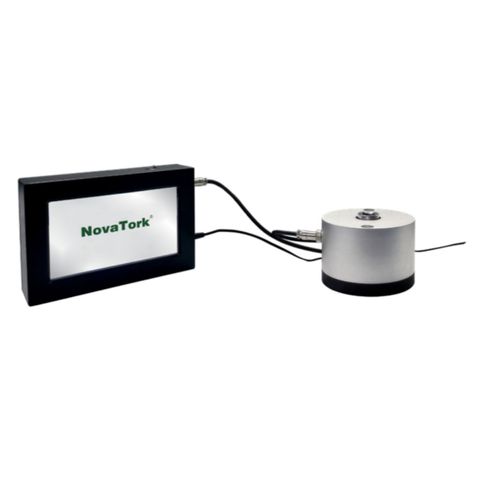

Novatork TEQ Series Precision Digital Torque Tester
Last Update
Price:
R.F.Q.
Accuracy: ±0.5% from 10% to 100% of capacity
Share Product:
Detail
● 7 Inch color touch screen
● Menu interface, clear and easy to operate
● Languages available: Chinese or English
● 8 Torque units: N.m, cN.m, kgm, ckgm, gm, Lb.ft, Lb.in, Oz.in
● 3 Test modes: First Peak, Peak, Track
● 3 Types of testing interfaces: Regular, Preset, Waveform
● 100 sets of parameters can be preset
● Automatic zero reset during continuous use.
● Overload warning signal
● During the wrench test, 15 test data will be automatically stored
● Stores up to 8000 test data
● It supports direct USB flash drive insertion for exporting the data file in Excel format.

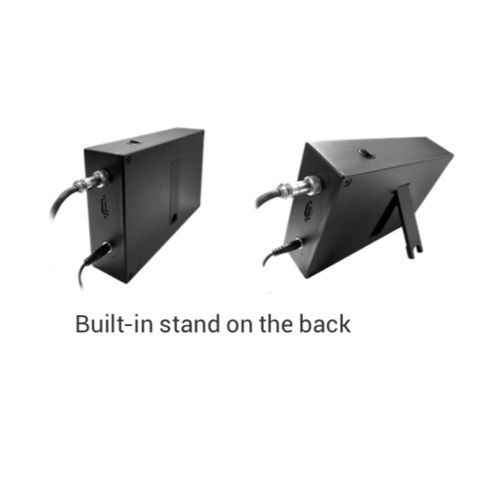

● The built-in stand can be extended for a better viewing angle.

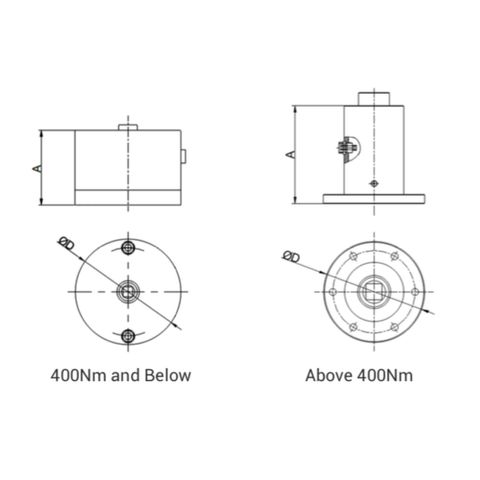

| Item No. | Meter LxWxH (mm) | Meter Weight (kg) | Model | Square Drive | Torque Range (N.m) | Torque Range (Lb.ft) | D Out Diameter (mm) | A Height (mm) | Weight (kg) | Loader for Tester |
|---|---|---|---|---|---|---|---|---|---|---|
| TEQ16 | 202 x135 x45 | 1.7 | CZ16 | 1/4“ | 0.6-6 | 5.31-53.1* | 100 | 71 | 1.9 | TS1350 |
| TEQ18 | 202 x135 x45 | 1.7 | CZ18 | 1/4“ | 0.8-8 | 7.08-70.8* | 100 | 71 | 1.9 | |
| TEQ110 | 202 x135 x45 | 1.7 | CZ110 | 1/4“ | 1.0-10 | 8.85-88.5* | 100 | 71 | 1.9 | |
| TEQ112 | 202 x135 x45 | 1.7 | CZ112 | 1/4“ | 1.2-12 | 10.6-106.2* | 102 | 72 | 2.1 | |
| TEQ225 | 202 x135 x45 | 1.7 | CZ225 | 3/8" | 2.5-25 | 1.8-18 | 102 | 72 | 2.3 | |
| TEQ240 | 202 x135 x45 | 1.7 | CZ240 | 3/8" | 4.0-40 | 3.0-30 | 102 | 72 | 2.33 | |
| TEQ275 | 202 x135 x45 | 1.7 | CZ275 | 3/8" | 7.5-75 | 5.5-55 | 102 | 72 | 2.37 | |
| TEQ3150 | 202 x135 x45 | 1.7 | CZ3150 | 1/2" | 15-150 | 11-110 | 102 | 77 | 2.44 | |
| TEQ3250 | 202 x135 x45 | 1.7 | CZ3250 | 1/2" | 25-250 | 18.4-184 | 102 | 77 | 2.44 | |
| TEQ3400 | 202 x135 x45 | 1.7 | CZ3400 | 1/2" | 40-400 | 29.5-295 | 102 | 77 | 2.44 | TS11100 |
| TEQ4650 | 202 x135 x45 | 1.7 | CZ4650 | 3/4" | 65-650 | 48-480 | 120 | 116 | 2.54 | |
| TEQ41250 | 202 x135 x45 | 1.7 | CZ41250 | 3/4" | 125-1250 | 92.2-922 | 120 | 128 | 2.73 | TS12000 |
| TEQ52500 | 202 x135 x45 | 1.7 | CZ52500 | 1" | 250-2500 | 184.4-1844 | 120 | 129 | 3 | TS13000 |
*Unit is Lb.in
Specification
| Keyword | |
| Brand |
Catalogue Download
