Name: Novatork WPEMH_B(SN) Model Rectangular Shank Head Holder Torque Wrench
Brand: Novatork

<p></p>
<table><thead><tr><th colspan="1" rowspan="1">Item No.</th><th colspan="1" rowspan="1">Square Drive</th><th colspan="1" rowspan="1">Torque Range (N.m)</th><th colspan="1" rowspan="1">Torque Range (Lb.ft)</th><th colspan="1" rowspan="1">Length L (mm)</th><th colspan="1" rowspan="1">Width W1 (mm)</th><th colspan="1" rowspan="1">Width W2 (mm)</th><th colspan="1" rowspan="1">Weight (kg)</th></tr></thead><tbody><tr><td>WPEMH910B(SN)</td><td>9X12</td><td>2.0-10</td><td>17.7-88.5*</td><td>233</td><td>20</td><td>63.5</td><td>0.52</td></tr><tr><td>WPEMH920B(SN)</td><td>9X12</td><td>4.0-20</td><td>30-180*</td><td>248</td><td>24</td><td>63.5</td><td>0.55</td></tr><tr><td>WPEMH930B(SN)</td><td>9X12</td><td>6.0-30</td><td>50-250*</td><td>248</td><td>24</td><td>63.5</td><td>0.55</td></tr><tr><td>WPEMH960B(SN)</td><td>9X12</td><td>10-60</td><td>9-45</td><td>318</td><td>24</td><td>63.5</td><td>0.88</td></tr><tr><td>WPEMH9100B(SN)</td><td>9X12</td><td>20-100</td><td>15-75</td><td>362</td><td>24</td><td>63.5</td><td>1</td></tr><tr><td>WPEMH14200B(SN)</td><td>14X18</td><td>40-200</td><td>30-150</td><td>484</td><td>32</td><td>63.5</td><td>1.34</td></tr><tr><td>WPEMH14300B(SN)</td><td>14X18</td><td>60-300</td><td>40-225</td><td>619</td><td>32</td><td>63.5</td><td>1.7</td></tr><tr><td>WPEMH14400B(SN)</td><td>14X18</td><td>80-400</td><td>59-295</td><td>699</td><td>32</td><td>63.5</td><td>1.85</td></tr><tr><td>WPEMH24500B(SN)</td><td>24X32</td><td>100-500</td><td>73.8-369</td><td>925</td><td>56</td><td>63.5</td><td>3.2</td></tr><tr><td>WPEMH24600B(SN)</td><td>24X32</td><td>120-600</td><td>88.5-443</td><td>1060</td><td>56</td><td>63.5</td><td>4.5</td></tr><tr><td>WPEMH24800B(SN)</td><td>24X32</td><td>160-800</td><td>118-590</td><td>1208</td><td>56</td><td>63.5</td><td>5</td></tr></tbody><tfoot></tfoot></table>
<p>* Unit is Lb.in.</p>


Novatork

Torque Wrench

Novatork WPEMH_B(SN) Model Rectangular Shank Head Holder Torque Wrench

Home

About

Showcase

Contact

Novatork WPEMH_B(SN) Model Rectangular Shank Head Holder Torque Wrench

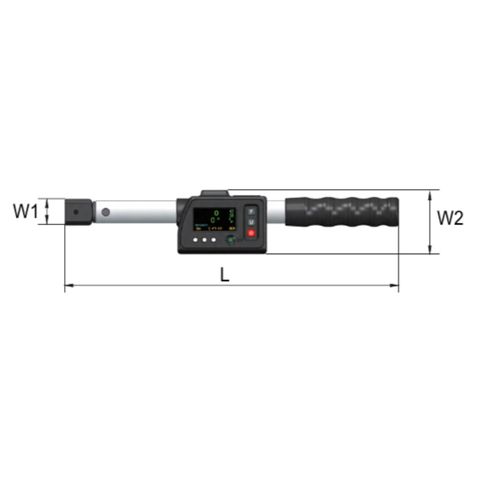

Item No.	Square Drive	Torque Range (N.m)	Torque Range (Lb.ft)	Length L (mm)	Width W1 (mm)	Width W2 (mm)	Weight (kg)
WPEMH910B(SN)	9X12	2.0-10	17.7-88.5*	233	20	63.5	0.52
WPEMH920B(SN)	9X12	4.0-20	30-180*	248	24	63.5	0.55
WPEMH930B(SN)	9X12	6.0-30	50-250*	248	24	63.5	0.55
WPEMH960B(SN)	9X12	10-60	9-45	318	24	63.5	0.88
WPEMH9100B(SN)	9X12	20-100	15-75	362	24	63.5	1
WPEMH14200B(SN)	14X18	40-200	30-150	484	32	63.5	1.34
WPEMH14300B(SN)	14X18	60-300	40-225	619	32	63.5	1.7
WPEMH14400B(SN)	14X18	80-400	59-295	699	32	63.5	1.85
WPEMH24500B(SN)	24X32	100-500	73.8-369	925	56	63.5	3.2
WPEMH24600B(SN)	24X32	120-600	88.5-443	1060	56	63.5	4.5
WPEMH24800B(SN)	24X32	160-800	118-590	1208	56	63.5	5
