High-abrasive front tiger mouth design. Strong Safety pin at accurate position. Reinforced cylinder with imported oil seals.

Home

About

Showcase

Contact

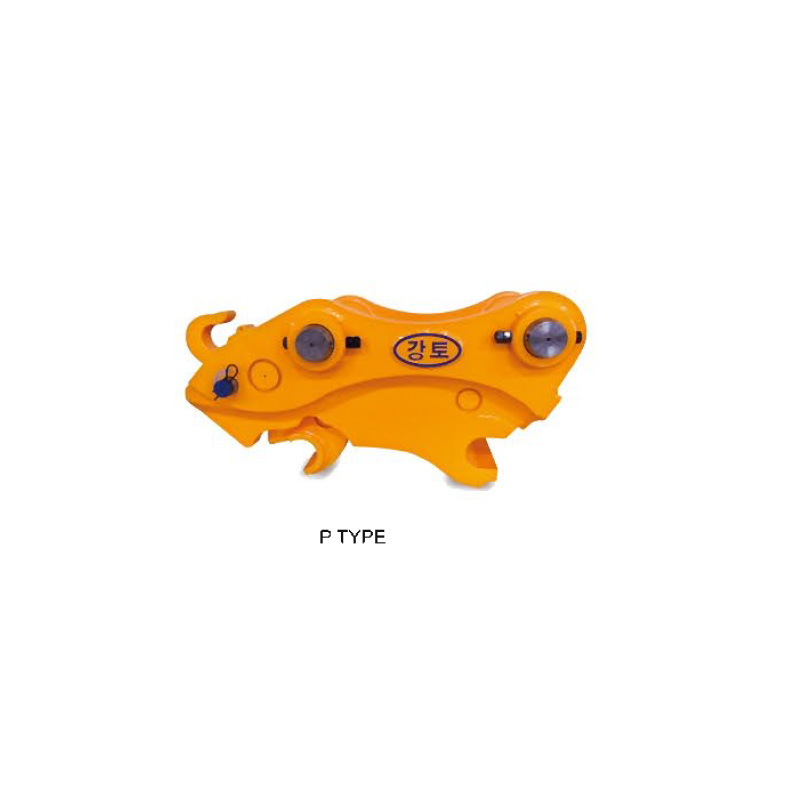

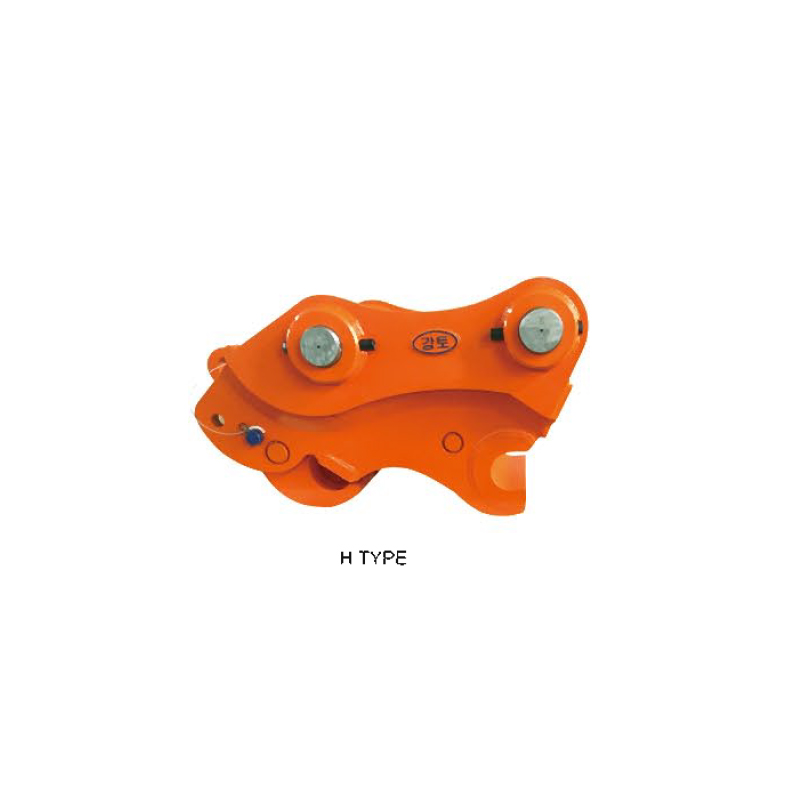

Quick Hitch Coupler

Find Nearby Companies

Zoom in to view more information

CATEGORY	Unit	JT-Mini	JT-02	JT-04	JT-06	JT-08	JT-08S	JT-10	JT-17
Length C	mm	300-450	520-542	581-610	760	920-955	950-1000	965-1100	1005-1150
Width B	mm	150-250	260-266	265-283	351-454	450-483	445-493	534-572	602-666
Height G	mm	225-270	312	318	400	512	512-540	585	560-615
Arm width A	mm	82-180	155-172	181-205	230-317	290-345	300-350	345-425	380-480
Pins center distance	mm	95-220	220-275	290-350	350-400	430-480	450-505	485-530	520-630
Pin diameter	mm	20-45	40-45	45-55	50-70	70-90	90	90-100	100-110
Cylinder Stroke E	mm	95-200	200-300	300-350	340-440	420-510	450-530	460-560	500-650
Vertical pins center distance	mm	170-190	200-210	205-220	240-255	300	320	350-370	370-380
Weight	kg	30-40	50-75	80-110	170-210	350-390	370-410	410-520	550-750
Necessary flow	l	10-20	10-20	10-20	10-20	10-20	10-20	10-20	10-20
Excavator	ton	1-4	4-6	6-8	12-16	18-25	25-26	26-30	30-40
